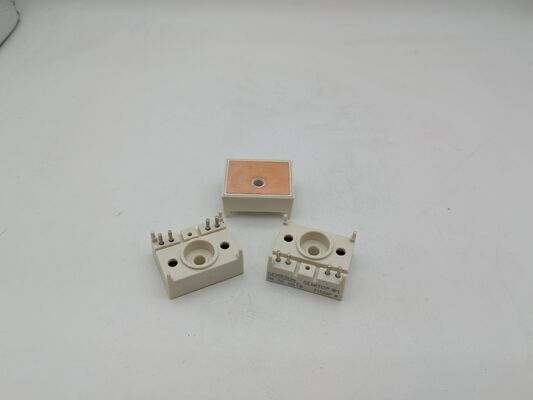

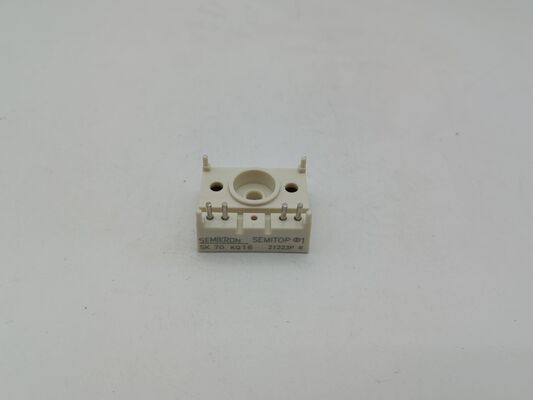

SK70KQ16 1600V 70A Quick IGBT Module Low Vce(sat) 2.3V Fast Turn-off Soft Recovery Diode High Temp 150°C Low Loss High Power Density For Compact UPS and Inverters
Features
-
Compact Design
-
One screw mounting
-
Heat transfer and isolationthrough direct copper bondedaluminium oxide ceramic (DBC)
-
Glass passived thyristor chips
-
Up to 1600V reverse voltage
-
UL recognized, file no. E 63 532
Applications
Description
The SK70KQ16 is a high-voltage, fast-switching IGBT power module designed for efficient and compact power conversion systems. It combines a 1600V blocking voltage with a 70A current rating, featuring advanced "Quick" IGBT technology that delivers a low collector-emitter saturation voltage (Vce(sat)) for reduced conduction losses and fast turn-off switching for lower switching losses. It is paired with a soft-recovery anti-parallel freewheeling diode to minimize voltage spikes and electromagnetic interference (EMI). This optimized balance of low losses enables higher switching frequencies, contributing to increased power density and smaller system size. Its robust construction ensures reliable operation in demanding industrial environments.
INFORMATION
| Current (A) |
72 A
|
| Dimensions (LxWxH) |
31x24x12
|
| Features |
- Compact Design
- One screw mounting module
- Heat transfer and insulation through direct copper bonded aluminium oxide ceramic (DBC)
- Antiparallel Thyristor module
- Up to 1600V reverse voltage
- UL recognized, file no. E 63 532
|
| Housing |
SEMITOP 1
|
| Legacy part number |
24302506
|
| Product line |
SEMITOP
|
| Product Status |
In Production
|
| Surge current (A) |
900 A
|
| Technology |
Thyristor / Diode
|
| Topology |
Thyristor
|
| Type |
SEMITOP 1
|
| Typical applications |
- Controlled rectifier circuit
- Solid state relays
- Soft starter
|
| Voltage (V) |
1600 V
|
