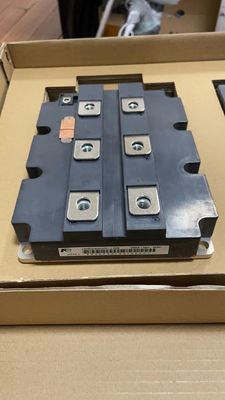

1MBI2400VD-170E 1700V/2400A IGBT Module Dual Configuration Low VCE(sat) High Speed Switching Built-in NTC Isolated Baseplate Industrial Grade for UPS & Solar Inverters
Features
High speed switching
Voltage drive
Low Inductance module structure
Applications
Inverter for Motor Drive
AC and DC Servo Drive Amplifier
Uninterruptible Power Supply
Industrial machines, such as Welding machines
Description

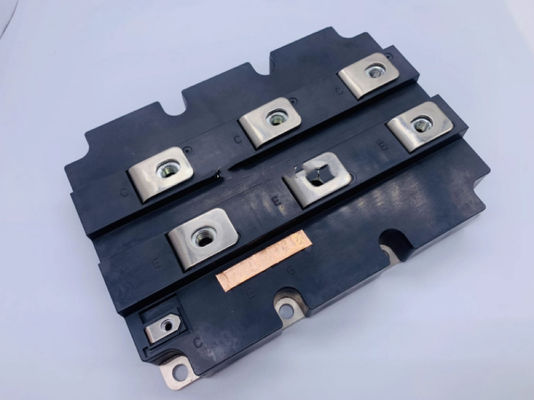

The 1MBI2400VD-170E is a high-power, industrial-grade IGBT (Insulated Gate Bipolar Transistor) module configured with two units in a single package. It is rated for an extremely high voltage of 1700V and a substantial collector current of 2400A, making it engineered for the most demanding power conversion applications.
This module is designed for high efficiency and reliability, featuring a low collector-emitter saturation voltage (VCE(sat)) and high-speed switching capabilities. Key built-in features include a negative temperature coefficient (NTC) thermistor for real-time temperature monitoring and an isolated baseplate for simplified thermal management and easy mounting to a heatsink. Its robust construction ensures long-term performance in harsh industrial environments.
