SPA04N80C3XKSA1 Power MOSFET 800V Ultra-High Voltage 4A Current Low Rds(on) Super Junction Technology Low Gate Charge High Efficiency Halogen-Free Robust Performance for SMPS & Industrial Drives

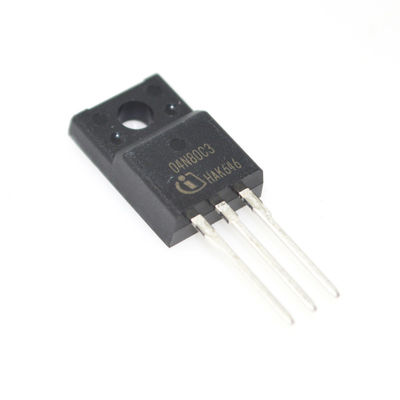

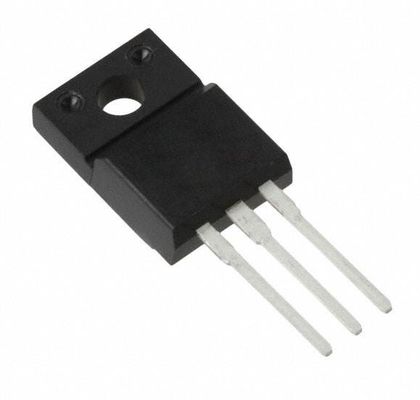

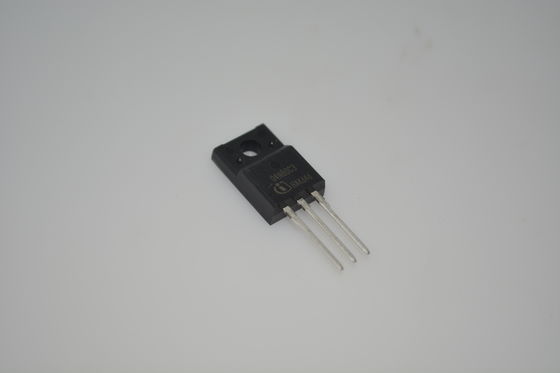

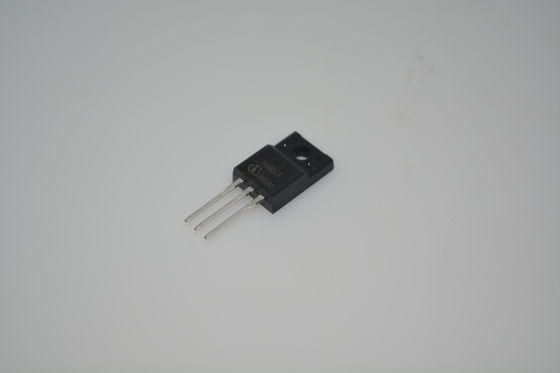

Grote Afbeelding : SPA04N80C3XKSA1 Power MOSFET 800V Ultra-High Voltage 4A Current Low Rds(on) Super Junction Technology Low Gate Charge High Efficiency Halogen-Free Robust Performance for SMPS & Industrial Drives

Productdetails:

Plaats van herkomst:	CHINA
Merknaam:	Infineon
Certificering:	CE, GCF, ROHS
Modelnummer:	SPA04N80C3XKSA1

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	1
Prijs:	negotiable
Verpakking Details:	Eerst in originele lade verpakt, vervolgens Carton, bij de laatste bellenzak voor buitenverpakking
Levertijd:	3-5 werkdagen na ontvangen de betaling
Betalingscondities:	T/T, Western Union,
Levering vermogen:	1000 stcs per maand

Contact

Gedetailleerde productomschrijving

Functie:	Step-up, step-down	Uitvoerconfiguratie:	Positief of negatief
Topologie:	Buck, boost	Uitgangstype:	Verstelbaar
Aantal uitgangen:	1

SPA04N80C3XKSA1 Power MOSFET 800V Ultra-High Voltage 4A Current Low Rds(on) Super Junction Technology Low Gate Charge High Efficiency Halogen-Free Robust Performance for SMPS & Industrial Drives

Features

New revolutionary high voltage technology

Extreme dv/dt rated

High peak current capability

Qualified according to JEDEC1) for target applications

Pb-free lead plating; RoHS compliant

Ultra low gate charge

Ultra low effective capacitances

Fully isolated package (2500 VAC; 1 minute)

Applications

1:Switch Mode Power Supplies (SMPS)

2:Power Factor Correction (PFC) circuits

3:Industrial motor drives and controls

4:Lighting ballasts and LED drivers

5:Renewable energy systems

Description

The SPA04N80C3XKSA1 is a high-voltage N-channel power MOSFET utilizing advanced super junction technology, delivering exceptional efficiency and reliability for demanding power conversion applications.

INFORMATION

Category	Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Mfr	Infineon Technologies
Series	CoolMOS™
Packaging	Tube
Part Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	800 V
Current - Continuous Drain (Id) @ 25°C	4A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	1.3Ohm @ 2.5A, 10V
Vgs(th) (Max) @ Id	3.9V @ 240µA
Gate Charge (Qg) (Max) @ Vgs	31 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	570 pF @ 100 V
FET Feature	-
Power Dissipation (Max)	38W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Grade	-
Qualification	-
Mounting Type	Through Hole
Supplier Device Package	PG-TO220-3-31
Package / Case	TO-220-3 Full Pack
Base Product Number	SPA04N80

Drawing

Our advantage :phones, PDA's, notebook comput.ers

High quality products --- our offers are 100% new and original, ROHS
Competitive price --- good Purchase channels with good price.
Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
Adequate inventory --- With the support of our strong Purchasing team,
Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

be sure to meet your need for all kinds of components. ^_^
