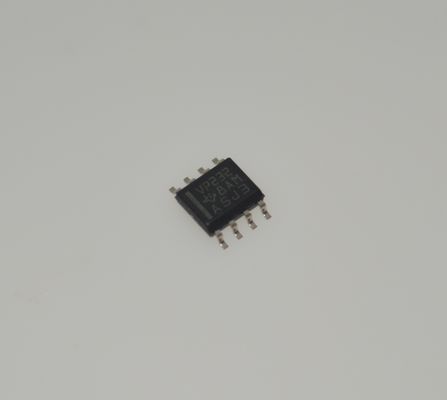

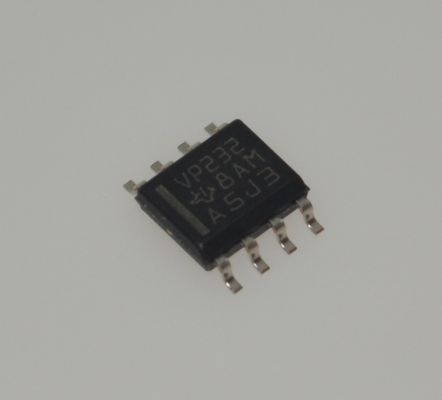

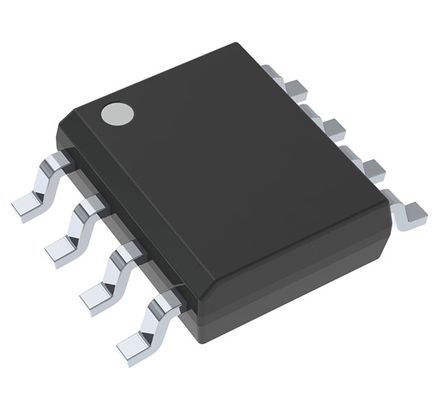

SN65HVD232DR 3.3V CAN Transceiver with High Speed Low EMI Fault Protection Wide Temp Range Low Power RS-485 Compatible and Robust ESD Performance

SN65HVD232DR 3.3V CAN Transceiver with High Speed Low EMI Fault Protection Wide Temp Range Low Power RS-485 Compatible and Robust ESD Performance

Features

• Operates with a single 3.3 V Supply

• Compatible With ISO 11898-2 Standard

• LowPower Replacement for the PCA82C250 Footprint

• BusPin ESD Protection Exceeds ±16 kV HBM

• High Input Impedance Allows for Up to 120 Nodes on a Bus

• Adjustable Driver Transition Times for Improved Emissions Performance

  – SN65HVD230 and SN65HVD231

• SN65HVD230: Low Current Standby Mode

  – 370μATypical

• SN65HVD231: Ultra Low Current Sleep Mode

  – 40nATypical

• Designed for Data Rates(1) up to 1 Mbps

• Thermal Shutdown Protection

• OpenCircuit Fail-Safe Design

• Glitch Free Power Up and Power Down Protection for Hot Plugging Applications

Applications

• Industrial Automation, Control, Sensors and Drive Systems

• Motor and Robotic Control

• Building and Climate Control (HVAC)

• Telecom and Basestation Control and Status

• CANBusStandards Such as CANopen, DeviceNet, and CAN Kingdom

Description

The SN65HVD230, SN65HVD231, and SN65HVD232 controller area network (CAN) transceivers are compatible to the specifications of the ISO 11898-2 High Speed CAN Physical Layer standard (transceiver). These devices are designed for data rates up to 1 megabit per second (Mbps), and include many protection features providing device and CAN network robustness. The SN65HVD23x transceivers are designed for use with the Texas Instruments 3.3 V µPs, MCUs and DSPs with CAN controllers, or with equivalent protocol controller devices. The devices are intended for use in applications employing the CAN serial communication physical layer in accordance with the ISO 11898 standard.

INFORMATION

Drawing

Our advantage :phones, PDA's, notebook comput.ers

• High quality products --- our offers are 100% new and original, ROHS
• Competitive price --- good Purchase channels with good price.
• Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
• Adequate inventory --- With the support of our strong Purchasing team,
• Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

be sure to meet your need for all kinds of components. ^_^
