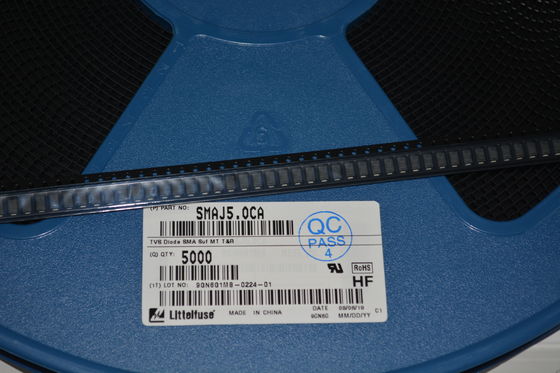

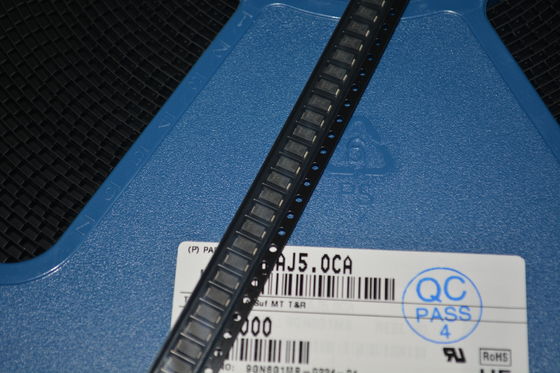

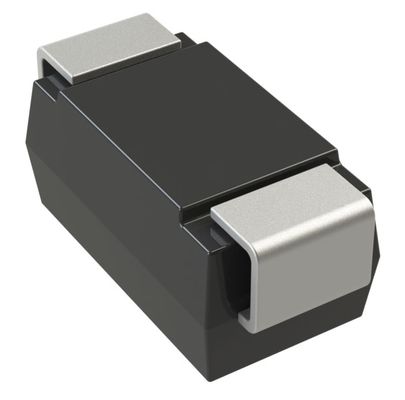

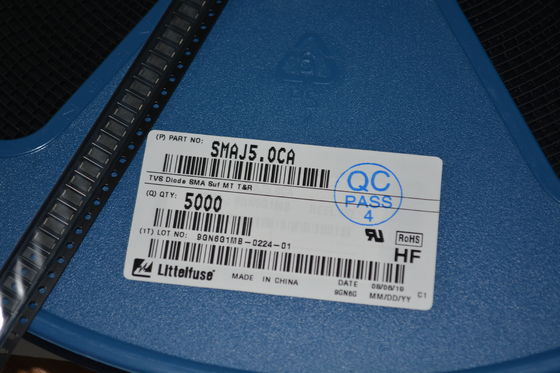

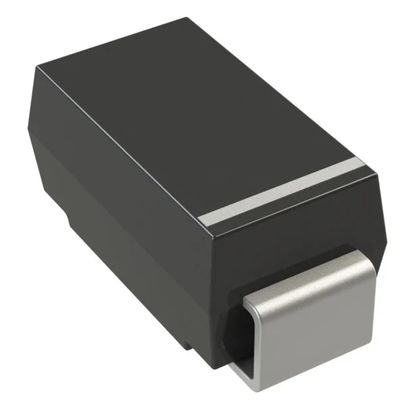

SMAJ5.0CA 5.0V TVS Diode with 600W Peak Power Bidirectional Protection Low Clamping Voltage Ultra-Fast Response SOD-123FL Package AEC-Q101 Qualified High Surge Capability and RoHS Compliance

SMAJ5.0CA 5.0V TVS Diode with 600W Peak Power Bidirectional Protection Low Clamping Voltage Ultra-Fast Response SOD-123FL Package AEC-Q101 Qualified High Surge Capability and RoHS Compliance

andnbsp;

Features

■400W Peak Pulse Power capability at 10/1000andmicro;s waveform, repetition rate (duty cycle): 0.01%

■Excellent clamping capability

■Typical IR less than 1andmu;A when VBR minandgt;12V

■ Surface mount footprint for compact PCB layout

■Low profile package

■Typical failure mode is short from over-specified voltage or current

■Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c

■ IEC-61000-4-2 ESD 30kV(Air), 30kV (Contact)

■ESD protection of data lines in accordance with IEC 61000-4-2

■ EFT protection of data lines in accordance with IEC 61000 4-4

■Built-in strain relief

■ Fast response time: typically less than 1.0ps from 0 Volts to VBR min

■Glass passivated junction

■Low inductance

■High temperature to reflow soldering guaranteed: 260anddeg;C/30sec

■ VBR @ TJ= VBR@25anddeg;C x (1+andalpha;T x (TJ - 25)) (andalpha;T:Temperature Coefficient, typical value is 0.1%)

■Plastic package is flammability rated V-0 per UL-94.

■Meet MSL level1, per J-STD-020, LF maximun peak of 260anddeg;C

■Matte tin, leadandndash;free plated

■Halogen free and RoHS compliant

■Pb-free E3 means 2nd level interconnect is Pb-free and the terminal finish material is tin(Sn) (IPC/JEDEC J-STD 609A.01)

andnbsp;

Applications

TVS devices are ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits used in Telecom, Computer, Industrial and Consumer electronic applications.

andnbsp;

Description

The SMAJ series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
