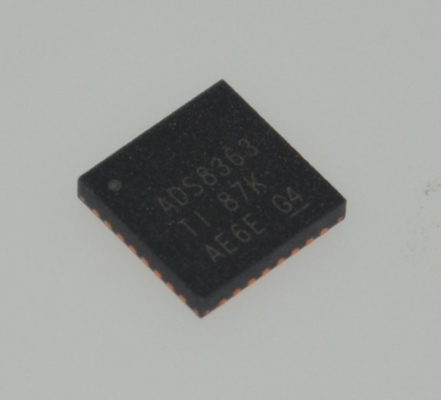

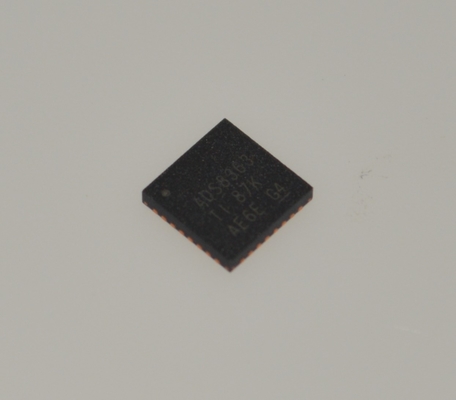

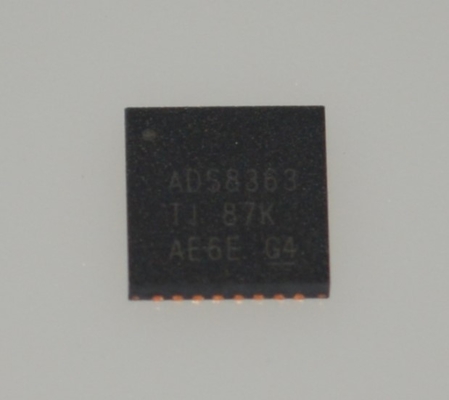

ADS8363SRHBR ADC 16-Bit Resolution 500kSPS Throughput 6-Channel Simultaneous Sampling Low Power (85mW) Parallel Interface ±2.5V Bipolar Input Internal Reference 64-pin QFP Package

ADS8363SRHBR ADC 16-Bit Resolution 500kSPS Throughput 6-Channel Simultaneous Sampling Low Power (85mW) Parallel Interface ±2.5V Bipolar Input Internal Reference 64-pin QFP Package

Features

• Eight Pseudo- or Four Fully-Differential Inputs

• Simultaneous Sampling of Two Channels

• Excellent AC Performance:

  – SNR:

    93 dB (ADS8363)

    85 dB (ADS7263)

    73 dB (ADS7223)

  – THD:

    –98 dB (ADS8363)

    –92 dB (ADS7263)

    –86 dB (ADS7223)

• Dual Programmable and Buffered 2.5-V Reference Allows:

  – TwoDifferent Input Voltage Range Settings

  – Two-Level PGA Implementation

• Programmable Auto-Sequencer

• Integrated Data Storage (up to 4 per channel) for Oversampling Applications

• 2-Bit Counter for Safety Applications

• Fully Specified Over the Extended Industrial Temperature Range:–40°C to +125°C

Applications

• Motor Control: Current and Position Measurement including Safety Applications

• Power Quality Measurement

• Three-Phase Power Control

• Programmable Logic Controllers

• Industrial Automation

• Protection Relays

Description

The ADS8363 is a dual, 16-bit, 1-MSPS analog-to digital converter (ADC) with eight pseudo- or four fully-differential input channels grouped into two pairs for simultaneous signal acquisition. The analog inputs are maintained differentially to the input of the ADC. The input multiplexer can be used in either pseudo differential mode, supporting up to four channels per ADC (4x2), or in fully-differential mode that allows to convert up to two inputs per ADC (2x2). The ADS7263 is a 14-bit version and the ADS7223 is a 12-bit version of the ADS8363.

The ADS8363, ADS7263, and ADS7223 offer two programmable reference outputs, flexible supply voltage ranges, a programmable auto-sequencer, data storage of up to four conversion results per channel, and several power-down features.

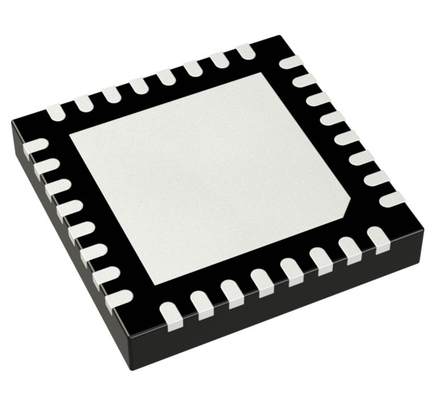

All devices are offered in a 5-mm x 5-mm, 32-pin VQFN package.

INFORMATION

Drawing

Our advantage :phones, PDA's, notebook comput.ers

• High quality products --- our offers are 100% new and original, ROHS
• Competitive price --- good Purchase channels with good price.
• Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
• Adequate inventory --- With the support of our strong Purchasing team,
• Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

be sure to meet your need for all kinds of components. ^_^


Product List
Supply a Series of Electronic Components, full range of semiconductors, active & passive Components.We can help you to get all for bom of the PCB,IN a word, you can get one-stop solution here,


The offers including:
Integrated Circuit, Memory ICs, Diode, Transistor , Capacitor, Resistor, Varistor, Fuse, Trimmer & Potentiometer, Transformer, Battery, Cable, Relay, Switch, Connector, Terminal Block, Crystal & Oscillator, Inductor, Sensor, Transformer, IGBT Driver, LED,LCD, Convertor, PCB (Printed Circuit Board),PCBA (PCB Assembly)

Strong in Brand:
Microchip, MAX, AD, TI, ATMEL, ST, ON, NS, Intersil, Winbond, Vishay, ISSI, Infineon, NEC, FAIRCHILD, OMRON,YAGEO, TDK, etc
