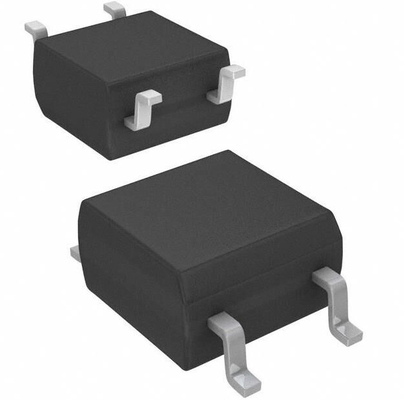

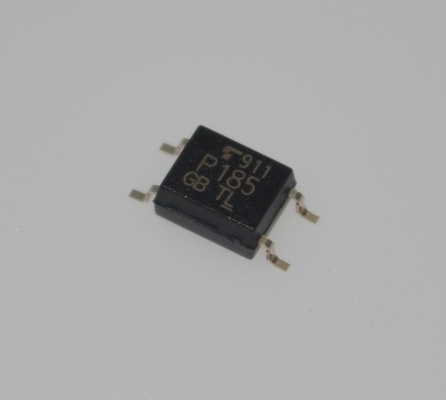

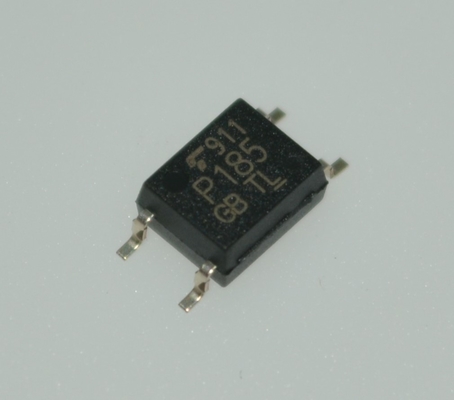

TLP185(GB-TPL,SE 5kV/rms Mini-Flat SOP Photocoupler 50mA LED Current High CTR 50-600% High Speed 1µs Max Wide Temp -55 to 110°C 3750Vrms Isolation Low Power Safety Approvals

TLP185(GB-TPL,SE 5kV/rms Mini-Flat SOP Photocoupler 50mA LED Current High CTR 50-600% High Speed 1µs Max Wide Temp -55 to 110°C 3750Vrms Isolation Low Power Safety Approvals

Features

Collector-emitter voltage: 80 V (min)

Current transfer ratio: 50% (min)

  GB Rank: 100% (min)

Isolation voltage: 3750 Vrms (min)

Operating temperature: -55 to 110

Safety standards UL-recognized:

  UL 1577, File No.E67349

  cUL-recognized: CSA Component Acceptance Service No.5A File No.E67349

  VDE-approved: EN 60747-5-5, EN 62368-1 (Note 1)

  CQC-approved: GB4943.1, GB8898 Japan and Thailand Factory

Applications

• Office Equipment

• Programmable Logic Controllers (PLCs)

• AC Adapters

• I/O Interface Boards

Description

The TLP185(SE consist of a photo transistor optically coupled to an infrared LED. The TLP185(SE photocoupler is housed in the very small and thin SO6 package. Since TLP185(SE is smaller than DIP package, it's suitable for high-density surface mounting application such

INFORMATION

Drawing

Our advantage :

• High quality products --- our offers are 100% new and original, ROHS
• Competitive price --- good Purchase channels with good price.
• Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
• Adequate inventory --- With the support of our strong Purchasing team,
• Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

be sure to meet your need for all kinds of components. ^_^
