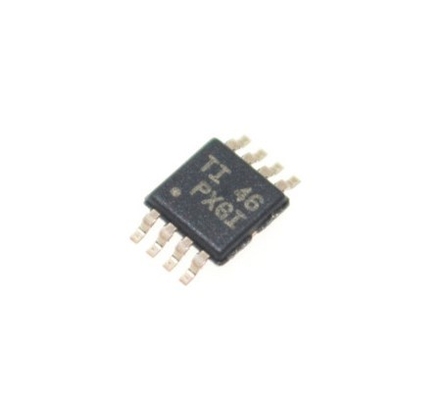

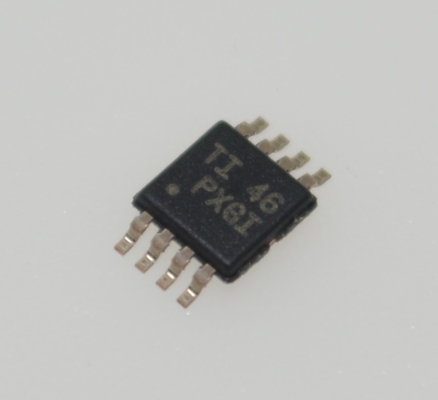

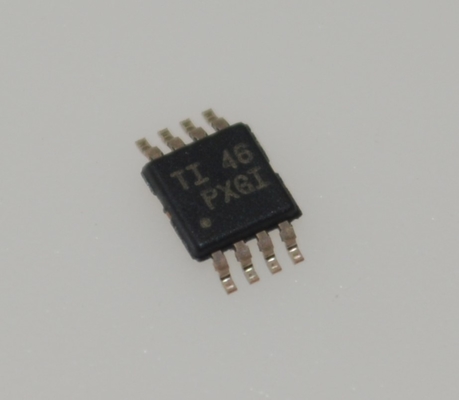

TPS2001CDGKR 1.5A Current-Limited Power Switch 2.7-5.5V Input 80mΩ RON VSSOP-8 -40°C to +85°C

TPS2001CDGKR 1.5A Current-Limited Power Switch 2.7-5.5V Input 80mΩ RON VSSOP-8 -40°C to +85°C

Features

• Single Power Switch Family

• Pin-for-Pin With Existing TI Switch Portfolio

• Rated Currents of 0.5 A, 1 A, 1.5 A, 2 A

• ±20%Accurate, Fixed, Constant Current Limit

• Fast Overcurrent Response: 2 µs

• Deglitched Fault Reporting

• Selected Parts With (TPS20xxC) and Without (TPS20xxC-2) Output Discharge

• Reverse Current Blocking

• Built-In Soft Start

• Ambient Temperature Range:–40°C to 85°C

• ULListed and CB-File No. E169910

Applications

• USBPorts and Hubs, Laptops, and Desktops

• High-Definition Digital TVs

• Set-Top Boxes

• Short-Circuit Protection

Description

The TPS20xxC and TPS20xxC-2 power-distribution switch family is intended for applications, such as USB, where heavy capacitive loads and short circuits are likely to be encountered. This family offers multiple devices with fixed current-limit thresholds for applications from 0.5 A to 2 A.

The TPS20xxC and TPS20xxC-2 family limits the output current to a safe level by operating in a constant-current mode when the output load exceeds the current limit threshold. This provides a predictable fault current under all conditions. The fast overload response time eases the burden on the main 5-V supply to provide regulated power when the output is shorted. The power-switch rise and fall times are controlled to minimize current surges during turnon and turnoff.

INFORMATION

Drawing

Our advantage :

• High quality products --- our offers are 100% new and original, ROHS
• Competitive price --- good Purchase channels with good price.
• Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
• Adequate inventory --- With the support of our strong Purchasing team,
• Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

be sure to meet your need for all kinds of components. ^_^
